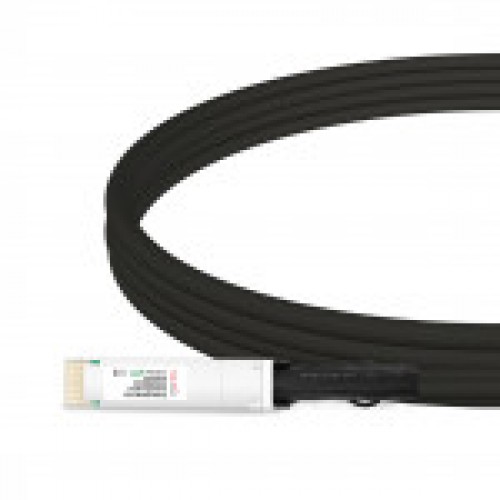

Кабель DAC Breakout QSFP-DD в 2*QSFP56 1.5м - TS-QD400-2Q200-BDAC-CU1.5M TELSAR

Пассивный медный Breakout кабель прямого подключения 400G QSFP112 предназначен для использования в сетях 400GBASE Ethernet и InfiniBand (IB). QSFP112 представляет собой систему модулей и разъемов на базе текущего стандарта QSFP, разработанную для поддержки скорости 112 Гбит/с на канал в 4-канальной системе QSFP, что обеспечивает функционирование экосистемы соединений 400G QSFP. Данное решение существенно упрощает пользователям предыдущих поколений QSFP модернизацию пропускной способности каналов до 400G на порт при меньших затратах и минимальном времени перехода. Кабель обеспечивает передачу данных от каждой из двух пар медных проводников на стороне одиночного разъема QSFP112 (пары 1 и 2, 3 и 4) к соответствующим парам каждого из разъемов QSFP112 (пары 1 и 2) на многопортовой стороне. Соответствие стандартам SFF-8636 и SFF-8024. Соответствие спецификациям IEEE 802.3ck и QSFP112 MSA. Поддержка двухпроводного интерфейса I2C для удобства управления. Поддержка «горячей» замены (hot plugging). Низкий уровень перекрестных помех (crosstalk). Низкое энергопотребление. Длина линии: 1.5 м. Применение: 400G Ethernet. 400G InfiniBand. Коммутаторы и маршрутизаторы. Центры обработки данных (ЦОД), облачные серверы. Electrical Performance Signal Integrity ITEM REQUIREMENT TEST CONDITION Differential Impedance Cable Impedance 100±5Ω Rise time of 25ps (20 % - 80 %). Paddle Card Impedance 100±10Ω Cable Termination Impedance 100±10Ω Differential to common-mode (Input/Output)Return loss S CD11 /S CD22 ] Return_loss(f)≥ Where f is the frequency in GHz Return_loss(f) is the Differential to common-mode return loss at frequency f 50MHz≤f ≤40GHz Common-mode to Common-mode (Input/Output)Return loss S CC11 /S CC22 ] Return_loss(f)≥1.8dB 0.05≤f≤40 Where f is the frequency in GHz Return_loss(f) is the common-mode to common-mode return loss at frequency f 50MHz≤f ≤40GHz Differential Insertion Loss (S DD21 Max.)] (Differential InsertionLoss Max. For TPa to TPb Excluding Test fixture ) 50MHz≤f ≤40GHz Insertion _loss(f)≥-19.75dB 0.05≤f≤26.56 Where f is the frequency in GHz Insertion Loss (f) Differential Insertion Loss at frequency f Differential to common-mode Conversion Loss-Differential Insertion Loss(S CD21 -S DD21 ) Conversion _loss(f) – IL(f)≥ Where f is the frequency in GHz Conversion_loss(f ) is the cable assembly differential to common-mode conversion loss IL(f) is the cable assembly insertion loss 50MHz≤f ≤40GHz Intra Skew 10ps/m, 10MHz≤f ≤19GHz Other Electrical Performance ITEM REQUIREMENT TEST CONDITON Low Level Contact Resistance 70milliohms Max. From initial. EIA-364-23:Apply a maximum voltage of 20mV And a current of 100 mA. Insulation Resistance 10Mohm(Min.) EIA364-21:AC 300V 1minute Dielectric Withstanding Voltage NO disruptive discharge. EIA-364-20:Apply a voltage of 300 VDC for 1minute between adjacent terminals And between adjacent terminals and ground. Environment Performance ITEM REQUIREMENT TEST CONDITON [Operating Temp. Range 0°C to +70°C Cable operating temperature range. Storage Temp. Range (in packed condition) -40°C to +85°C Cable storage temperature range in packed condition. Thermal Cycling Non-Powered No evidence of physical damage EIA-364-32D, Method A, -25 to 90C, 100 cycles, 15 min. dwells Salt Spraying 48 hours salt spraying after shell corrosive area less than 5％. EIA-364-26 Mixed Flowing Gas Pass electrical tests per 3.1 after stressing. (For connector only) EIA-364-35 Class II,14 days. Temp. Life No evidence of physical damage EIA-364-17C w/ RH, Damp heat 90℃ at 85% RH for 500 hours then return to ambient Cable Cold Bend 4H,No evidence of physical damage Condition: -20℃±2℃, mandrel diameter is 6 times the cable diameter. Mechanical and Physical Characteristics ） ITEM REQUIREMENT TEST CONDITON Vibration Pass electrical tests per 3.1 after stressing. Clamp & vibrate per EIA-364-28E, TC-VII, test condition letter – D, 15 minutes in X, Y & Z axis. Cable Flex No evidence of physical damage Flex cable 180° for 20 cycles (±90° from nominal position) at 12 cycles per minute with a 1.0kg load applied to the cable jacket. Flex in the boot area 90º in each direction from vertical. Per EIA-364-41C Cable Plug Retention in Cage 90N Min. No evidence of physical damage Force to be applied axially with no damage to cage. Per SFF 8661 Rev 2.1 Pull on cable jacket approximately 1 ft behind cable plug. No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0 Cable Retention in Plug 90N Min. No evidence of physical damage Cable plug is fixtured with the bulk cable hanging vertically. A 90N axial load is applied (gradually) to the cable jacket and held for 1 minute. Per EIA-364-38B Mechanical Shock Pass electrical tests Per 3.1 after stressing. Clamp and shock per EIA-364-27B, TC-G,3 times in 6 directions, 100g, 6ms. Cable Plug Insertion 60N Max.(QSFP112) Per EIA-364-13 Test with connector, cage and module. (Latch disengaged, without heatsink) Cable plug Extraction 30N Max. (QSFP112) Per EIA-364-13 Test with connector, cage and module. (Latch disengaged, without heatsink) Durability 50 cycles,No evidence of physical damage EIA-364-09, perform plug &unplug cycles:Plug and receptacle mate rate: 250times/hour. 50times for QSFP28/SFP28 module (CONNECTOR TO PCB)
