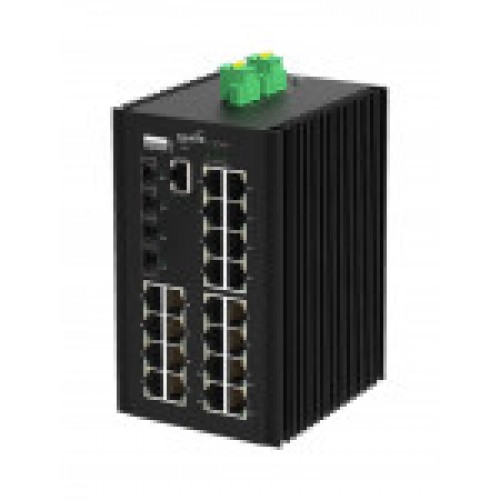

Коммутатор Ethernet PoE++ промышленный L3 TS3510MI-24TP4X-4BT TELSAR (240Вт/370Вт)

TS3510MI-24TP4X-4BT от Telsar – это высоконадежные управляемые промышленные коммутаторы PoE уровня 3 (L3) с 24 портами RJ45- 100/1000Base-T и 4 портами SFP+ 1G/2.5G/10GBase-X. Данное оборудование соответствует стандартам IEEE802.3af PoE, IEEE802.3at PoE+, IEEE802.3bt PoE++, максимальная потребляемая мощность на порт может достигать 90 Вт (1–4 порта), что является идеальным решением для промышленных сетевых устройств с высоким энергопотреблением. Благодаря возможности передачи данных по гигабитному нисходящему каналу и восходящему каналу 10G, данные коммутаторы обеспечивают высокую производительность и возможность быстрой передачи больших объемов видео, голосовых данных и информации по сети. Они поддерживают технологии резервирования G.8032ERPS, MSTP/RSTP/STP, статическую и динамическую маршрутизацию уровня 3 (L3), мощное управление уровня 2 (L2) и функции безопасности, что делает их идеальными для крупномасштабных промышленных сетей. TS3310MI-8TP4X-FB является высокоэффективным и простым в использовании устройством, обеспечивающим основные функции промышленной сети Ethernet, включая широкий диапазон входного напряжения 44–57 В постоянного тока, резервную схему питания с защитой от обратной полярности, прочный корпус IP40 без вентилятора с установкой на DIN-рейку, широкий диапазон рабочих температур от –40 °C до 70°C, а также высокий уровень электромагнитной совместимости (EMI/EMC). Данные коммутаторы являются лучшим выбором для тяжелой промышленности, транспорта, нефтегазовой отрасли, химической промышленности, систем видеонаблюдения и автоматизации технологических процессов, эксплуатируемых в суровых условиях окружающей среды с критическими показателями. Особенности коммутатора Ethernet L3 управляемого TELSAR: 24 порта 10/100/1000Base-T RJ45 PoE, 4 порта SFP+ 1G/2.5G/10GBase-X. Вход постоянного тока 44–57 В, резервный источник питания с защитой от обратной полярности/перенапряжения/перегрузки по току. Соответствует стандартам IEEE802.3af PoE, IEEE802.3at PoE+ и IEEE802.3bt PoE++. Поддерживает настройку и обновление через USB одним нажатием кнопки. Функции L3: Статическая маршрутизация IPv4/IPv6, клиент DHCPv4/DHCPv6, ретранслятор DHCPv4, ретранслятор DHCP; поддержка ECMP, VRRP, RIP, OSPF, BGP4, IS-IS; 13 тысяч записей маршрутизации. Функции L2: VLAN/GVRP/QinQ/SPAN/RSPAN/STP, RSTP, MSTP/DHCP/Многоадресная рассылка/ACL/QoS/LLDP/802.1X/AAA/Обнаружение петель/Затухание сигнала/SFP DDM/Управление IPV6/Двойной стек/ sFlow/Веб/SNMP/MQTT/Telnet/TFTP/Обновление через веб. Поддержка протокола G.8032 ERPS, время восстановления ≤ 20 мс. Поддержка защиты от перенапряжения 6 кВ и электростатического разряда: защита от воздушного разряда – 15 кВ, защита от контактного разряда – 8 кВ. Степень защиты IP40, безвентиляторная конструкция и возможность установки на DIN-рейку. Рабочая температура: от –40 °С до +70 °С. Технические характеристики TS3510MI-24TP4X-4BT Модель TS3510MI-24TP4X-4BT Interface Fiber ports Copper RJ45 ports 4 24 Ethernet 24*10/100/1000Base-T RJ45 PoE (1-4 ports support PoE++) 4*1G/2.5G/10GBase-X SFP+ CPU Marvell AC5 series 1.2GHz Size of RAM 1GB Size of Flash 512MB Switch chip model Marvell AC5 series Management port 1*RJ45 Console port (115200,8,N,1), 1*USB 2.0 for configuration and firmware update Standard IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE 802.3ae 10Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE802.3af PoE IEEE802.3at PoE+ IEEE802.3bt PoE++ LED Indicators P1/P2 (Power indicator) Off: the device is power off or failed On: the device power on is normal SYS(System status indicator) Blinking: device initialization On: device on normal operation USB (USB status indicator) Green Off: USB flash drive not insert or not detected by device On: USB flash drive is detected by device Blinking: the device is reading and writing the data from USB flash drive ALM(Fault status indicator) Red Off: Device on normal working state On: Fault alarm Ring(Ring network indicator) Off: Ring network disable On: Ring network enable 1-24 (Copper ports indicators) Green Off: ports link down On: ports link up Blinking: data on TX/RX 1-24(PoE status indicators) Yellow Off: PoE not working On: PoE working 25-28(Fiber ports indicators) Green Off: ports link down On: ports link up Blinking: data on TX/RX Power parameter Input voltage 44-57VDC(802.3af) 52-57VDC(802.3at/802.3bt) redundant power input Input current 6.2A DC/DC input Max Total power consumption Full loadingwithout PoE≤26W Single power input: PoE power budget ≤240W (-40°C~+70°C) Dual power input: PoE power budget ≤370W (-40°C~+60°C) Dual power input must be the same as DC voltage Connector Removable 2*2-pin terminal block Reverse polarity protection Support Over-current protection Support Layer 2 switching Port aggregation Support GE port aggregation Support 2.5GE aggregation Support 10GE aggregation Support static aggregation Support LACP dynamic aggregation Up to 64 aggregation groups and up to 8 ports per group Port features Support IEEE802.3x flow control Support interface counters Support port isolation Port mirroring (One-to-One, Many-to-One) Support loop detection (Port-based; VLAN-based) Support broadcast storm suppression (broadcast; unknown multicast; unknown unicast) VLAN IEEE802.1Q tagged VLAN Mac based VLAN IP based VLAN Protocol based VLAN Voice VLAN, specially divide VLAN for user voice data flow Private VLAN, divide a VLAN broadcast domain into multiple subdomains to form a double-layer VLAN structure VLAN range: 1-4094 Support access mode/trunk mode/hybrid mode Mac-address table management Support static Mac-address management Support dynamic Mac-address Management Support filtering Mac-address Support MAC limit based on port and VLAN Support MAC flapping based on port and VLAN 16K Mac-address table size GVRP Normal mode Fixed mode Forbidden mode QinQ Port-based QinQ VLAN-based QinQ VLAN mapping Flow-based QinQ LLDP Link Layer Discovery Protocol Med SPAN Number of Sessions: 7 Many-to-one RSPAN Remote Switch Port Analyzer MSTP 802.1D STP 802.1W RSTP 802.1S MSTP BPDU Guard Number of Single Ring Device Connections: 20 ERPS G.8032 Major ring Sub ring Recovery time ≤20ms Number of Single Ring Device Connections: No limit QoS QoS Class, Remarking Support SP, WRR Queue Scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Egress port-queue shaper Policy-based QoS Port Queue Numbers: 8 DHCPv4 Snooping DHCP snooping trust port DHCP snooping option-82 DHCP snooping circuit-id and remote-id customized L2 Multicast IGMP IGMP v1, v2, v3 IGMP Snooping Internet Group Management Protocol Snooping Fast Leave Multicast Table Size: 1K PIM-SM Protocol Independent Multicast-Sparse Mode Security features ACL IP Standard ACL IP Extended ACL MAC extend ACL IPv6 ACL Time Range ACL apply on VLAN ACL Entrys, include input and output 802.1x Port access control Mac-address access control RADIUS server Port-security Port-security IP source guard IP Source Guard, Port-based IP/Mac Binding Access ARP-check Support ARP-check and ARP packet filtering for illegal users DAI Dynamic ARP Inspection Anti-gateway ARP Spoofing Prevent Gateway ARP Spoofing Ddos Ddos attack protection Access control Support Telnet/SSH/HTTP/HTTPS user access control AAA RADIUS authentication access switch TACACS authentication access switch Authorization Reliability Loop Detect Loop detect, based on port or VLAN EFM The Ethernet in the first mile, 802.3ah Management & Maintenance functions Dual Stack IPv4 and IPv6 Dual Stack Management System Log Management Syslog Level 7 to 0 Corresponding Debug/Info/Notice/Warning/Err/Critical/Alert Support connecting up to 3 Servers For IPv4 and IPv6 User Management Support password protection, support MD5/SHA256/SHA512 algorithm Local Management of User Privilege Remote authorization by RADIUS or TARCAS Enable privilege protection User password complexity requirements User login fail protection User Privilege Level 0 to 15 Login Service Management Up to 8 users online simultaneously Access control based on IPv4 or IPv6 ACL Firmware Management Firmware upgraded by WEB Firmware upgraded by CLI Dual partition Web Management Web Management Support HTTP V1.1 Support HTTPS For IPv4 and IPv6 CLI management Console/Telnet command line management Fault Detection Ping/Traceroute, For IPv4 and IPv6 Dying gasp Optical transceiver DDM One click fault information collection Cable detection DNS Domain Name System NTP Network Time Protocol, For IPv4 and IPv6 Support domain name configuration Configuration Import /Export FTP/TFTP based remote configuration import and export sFlow Sampled flow SNMP Version SNMPV2C/V3 MQTT Message Queuing Telemetry Transport RMON Support RMON(Remote Monitoring) alarm PoE management Support 802.3af/802.3at/802.3bt Support 802.3af/802.3at Support PD watchdog Support PoE priority management Support Max PoE power configuration for each port Support alarm threshold configuration Support reserved power configuration Support PoE schedule Support PoE legacy mode Dual partition management Support dual partition switching Application Protocol Functions Telnet server Support telnet server for IPv4 and IPv6 Telnet client Support telnet client for IPv4 and IPv6 SCP (Secure Copy Protocol) SCP client/server for IPv4 and IPv6 SFTP sftp client/server for IPv4 and IPv6 SSH server Support login based on user password-SSH2, support IPv4, IPv6 Support public key-based login TACACS Support TACACS(the terminal access controller accesses the control system) TFTP Support TFTP Client Layer 3 features Static Route Support VLAN interface and route port IPv4 static routing table entry configuration ARP dynamic learning and static configuration IPv6 static routing table entry configuration Neighbor discovery and static configuration Routing prefix table size 4k for IPv4, for IPv6 divide by 4 DHCPv4 Client Dynamic host configuration protocol for IPv4 DHCPv6 Client Dynamic host configuration protocol for IPv6 DHCPv4 Relay DHCP Relay for IPv4 DHCPv4 Server DHCP Server for IPv4 ECMP Support ECMP (Equal-cost multi-path routing) Support the configuration of ECMP Max next-hop Support capacity balanced configuration Route policy IPv4 prefix-list VRRP Virtual Router Redundancy Protocol Routing Protocol Specification RIP RIPv1/v2 OSPFv2 OSPFv2 BGP4 BGP4 BGP Support Routing Recursive ECMP Support to view the number of neighbors and up/down state IS-IS IS-ISv4 Routing entries 13K Switching features Switching capacity 128Gbps Packet forwarding rate 95.232Mpps MAC address table 16K VLAN 4K Buffer 12Mbit Forwarding delay <5us Jumbo Frame Support 10Kbytes MDX/MIDX Support Watchdog Support Mechanical structure Case protection IP40 Installation method Din-rail Dimension(W*D*H)mm 110*115*158mm Weight 2.30kg Operating environment Operating temperature -40℃~+80℃ Storage/transportation temperature -40℃~+85℃ Relative humidity Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH Industrial Standard EMS Surge protection of power: IEC 61000-4-5 6KV/4KV (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV (10/700us) RS: IEC 61000-4-3 80 MHz-1 GHz: 10 V/m EFT: IEC 61000-4-4 4K/2K CS: IEC 61000-4-6 10V ESD: IEC 61000-4-2Contact: 8K; Air: 15K EMI FCC Part 15B Class A Shock IEC 60068-2-27 Free fall IEC 60068-2-32 Vibration IEC 60068-2-6 Certification CE/RoHS/FCC MTBF ＞200,000 hours Warranty 5 years
